Inductive Graphs

Tikhon Jelvis

tikhon@jelv.is

Graphs: Hard in Haskell?

Graph algorithms and data structures:

too imperative

Pattern match on a graph?

What can we match on?

  • lists
  • trees
  • algebraic data types

Why?

Algebraic data types are inductive:

there is exactly one way to construct them

Consider lists:

data List a = Nil | Cons a (List a)

one way to construct

Nil
Cons 1 (Cons 2 Nil)

one way to deconstruct

case list of
  Nil       -> ...
  Cons x xs -> ...

Graphs are not inductive

Graph construction — implementation detail

nodes are not ordered

Let's pretend!

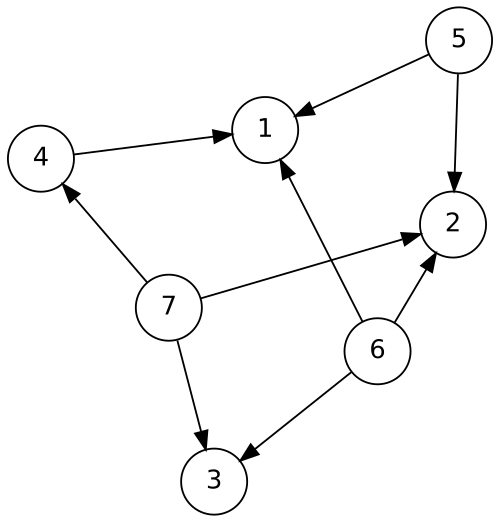

View graphs as inductive

Decompose into:

  • a node
  • its edges
  • the rest of the graph

View graphs as ADTs

data Context =
  Context [Node] Node [Node]

data View =
  Context :& Graph

(ignoring node and edge labels)

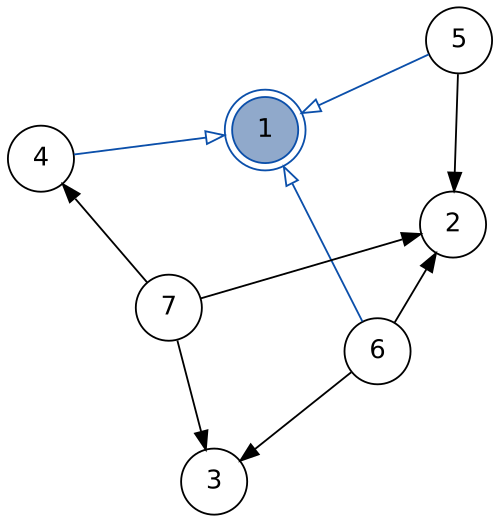

([4, 5, 6], 1, []) :& graph

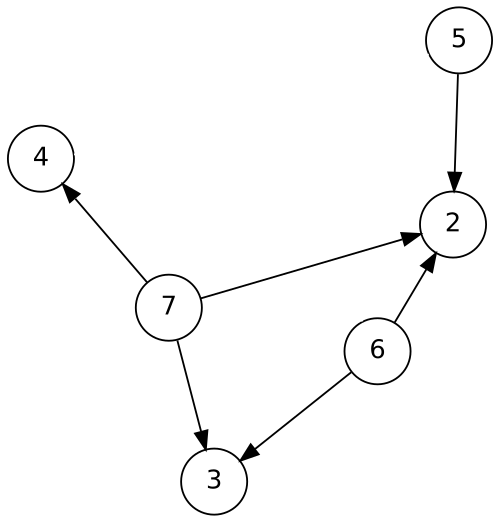

the rest of the graph

Like lists:

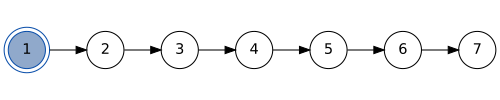

match

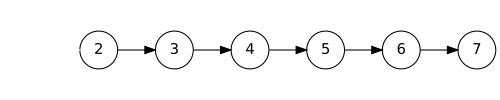

recurse

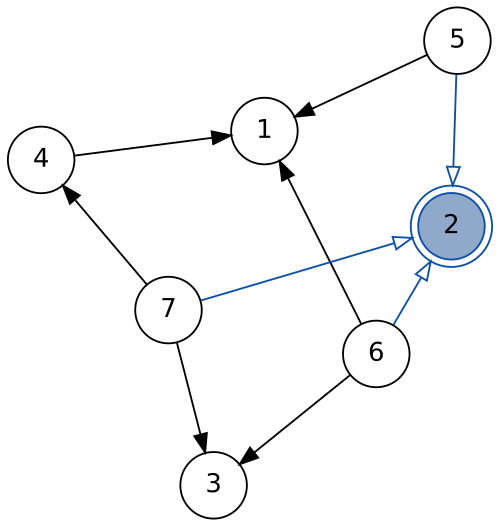

Another match


([5, 6, 7], 2, []) :& graph

matchAny

matchAny :: Graph -> View

foo :: Graph -> ...
foo graph | isEmpty graph     = ...
foo (matchAny -> ctx :& rest) = ...

match

match :: Node -> Graph -> Maybe View
  • matches a specific node
  • Nothing if not in graph
  • directed graph traversal

depth-first traversal

dfs :: [Node] -> Graph -> [Node]
dfs [] _ = []

dfs (x:xs) (match x -> Just (ctx :& g)) =
  x : dfs (neighbors ctx ++ xs) g

dfs (_:xs) graph = dfs xs graph


stack: []

result: []

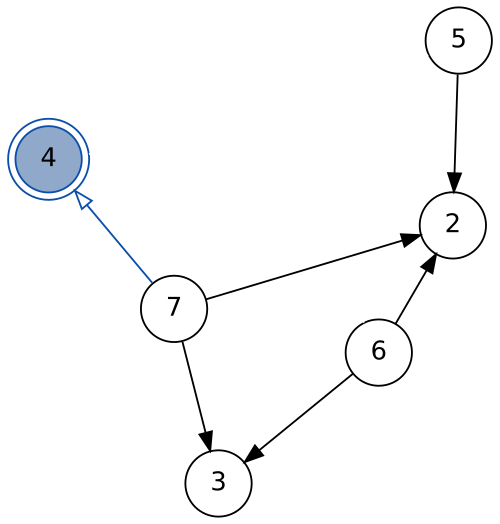

stack: [4, 5, 6]

result: [1]


stack: [7, 5, 6]

result: [1, 4]

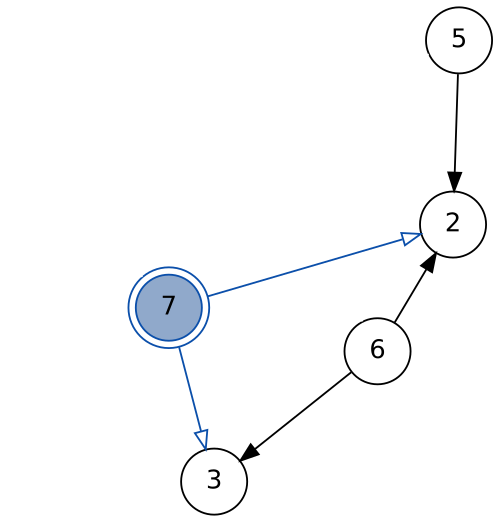

stack: [2, 3, 5, 6]

result: [1, 4, 7]

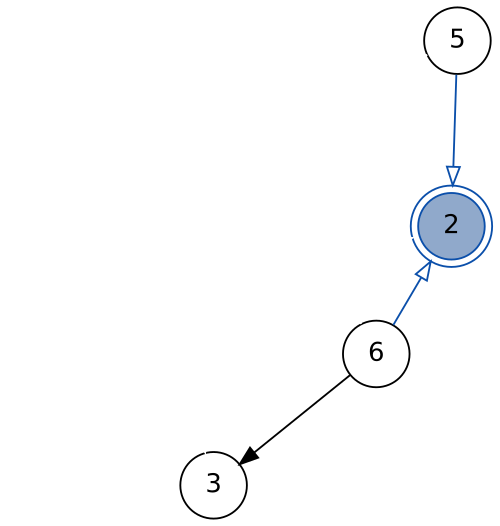

stack: [5, 6, 5, 6]

result: [1, 4, 7, 2]

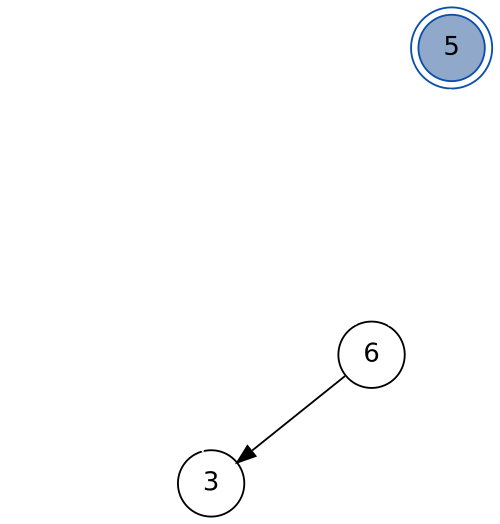

stack: [6, 5, 6]

result: [1, 4, 7, 2, 5]

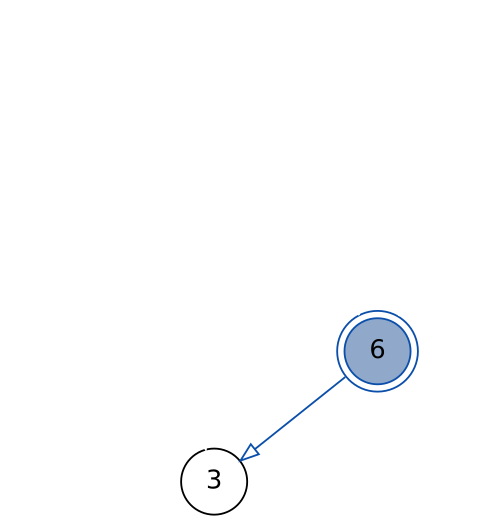

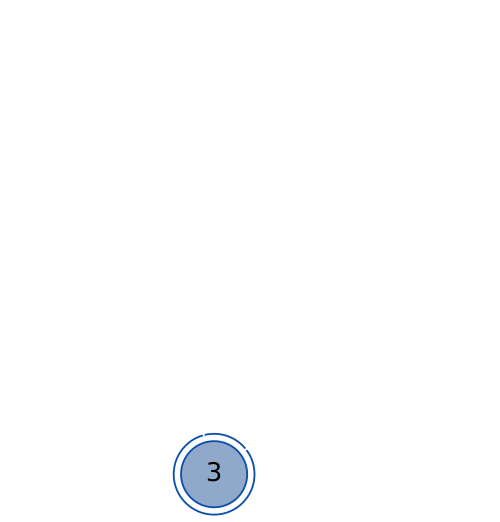

stack: [3, 5, 6]

result: [1, 4, 7, 2, 5, 6]


stack: [5, 6]

result: [1, 4, 7, 2, 5, 6, 3]

Pattern Matching on Graphs!

  • see graphs as inductive
  • use directed pattern matching
  • write normal functional code

Real World Use

  • fgl library
    • labels
    • directed edges
    • slightly different API
  • higher-order graph functions

Further Reading

Created by Tikhon Jelvis.
