Inductive Graphs (Functional Graph Library)

Tikhon Jelvis (tikhon@jelv.is)

Press → key to advance.
Zoom in/out: Ctrl or Command + +/-

1 Graphs

graphs are tricky in functional programming
but what's easy?
- lists
- trees

2 Pattern Matching

why?
we can pattern match on trees and lists!

foo []     = []
foo (x:xs) = bar x : foo xs

computation follows the "shape" of the type

3 Inductive Data Types

lists have exactly one decomposition at any given point
reverse of how they are constructed
"inductive data types":

data [a] = []      -- base case
         | a : [a] -- recursive case

4 Inductive Graphs?

can we do the same for graphs?
no
a graph does not have a canonical decomposition
multiple ways to construct the same graph

5 Inductive Graphs!

we can give up on canonicity
view graphs inductively
- multiple possible views
- graphs aren't actually built this way
library: fgl

6 Type

decompose graph into:
- a node
- its edges
- the rest of the graph

data Graph =
     Empty
  | (Context [Edge] Node [Edge]) :& Graph

ignoring node/edge labels

7 Demo

img/example.png

8 Demo

img/match1.png

9 Demo

img/match2.png

10 Demo

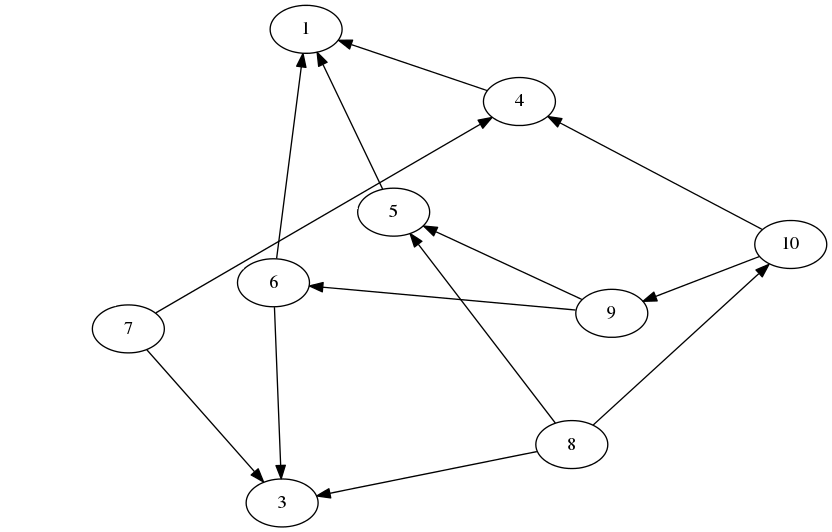

img/recurse2.png

11 DFS

a depth-first search, producing a list of nodes:

dfs (x:xs) (match x -> (Just ctx, g)) =
  x : dfs (neighbors' ctx ++ xs) g

dfs (_:xs) graph = dfs xs graph

base cases: empty stack or empty graph

12 DFS

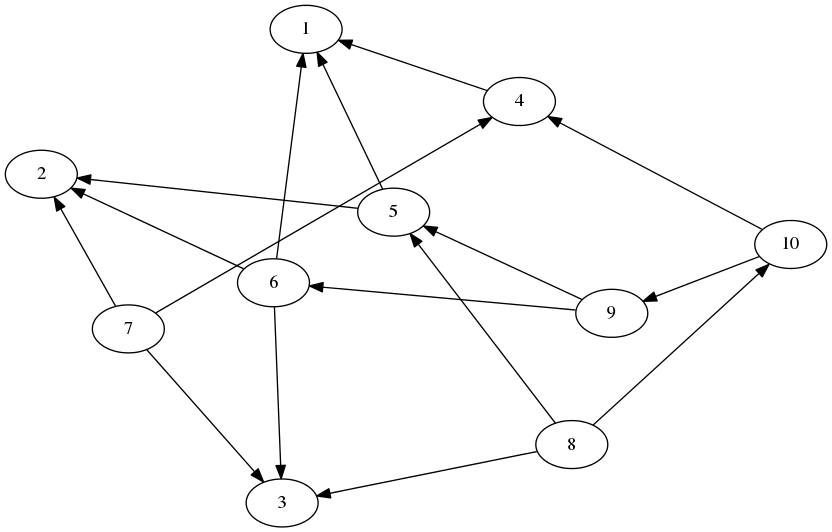

-stack: [1] img/example.png

13 DFS

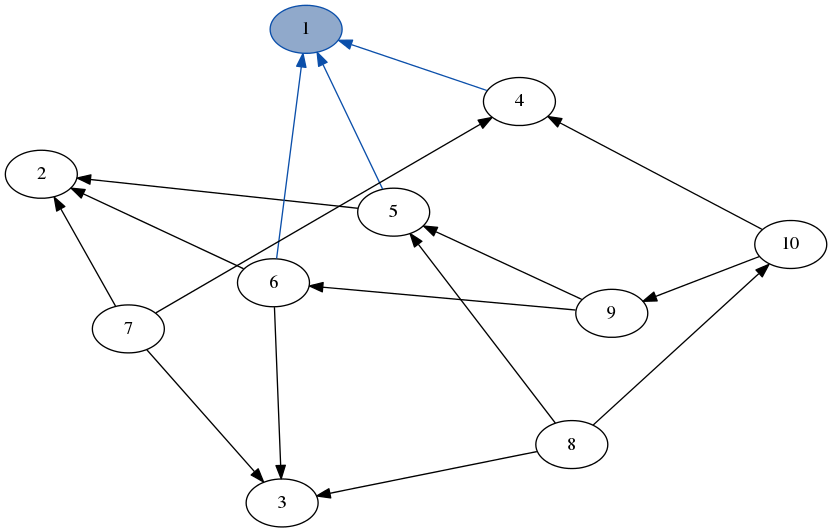

-stack: [5, 4, 6] img/match1.png

14 DFS

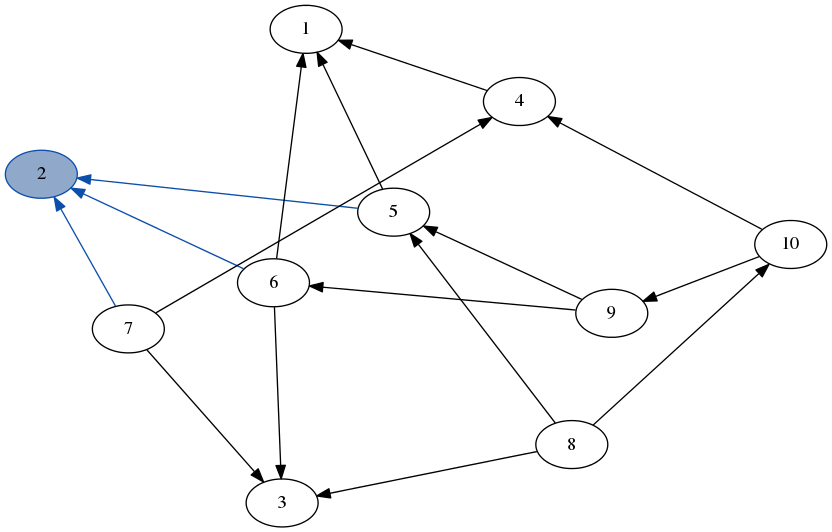

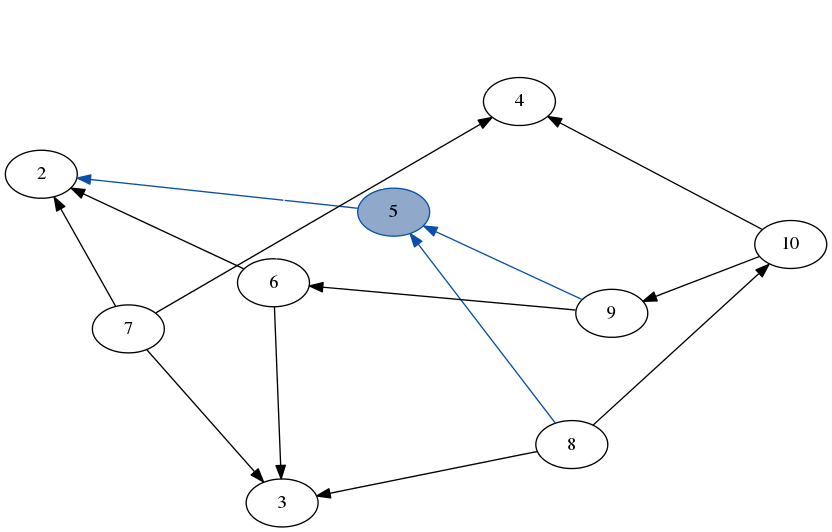

-stack: [2, 8, 9, 4, 6] img/match5.png

15 DFS

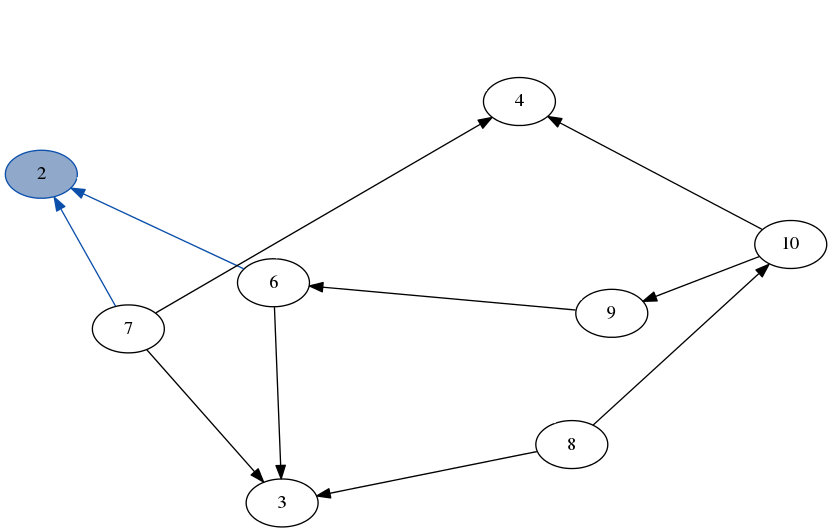

-stack: [7, 6, 8, 9, 4, 6] img/match2-2.png

16 DFS

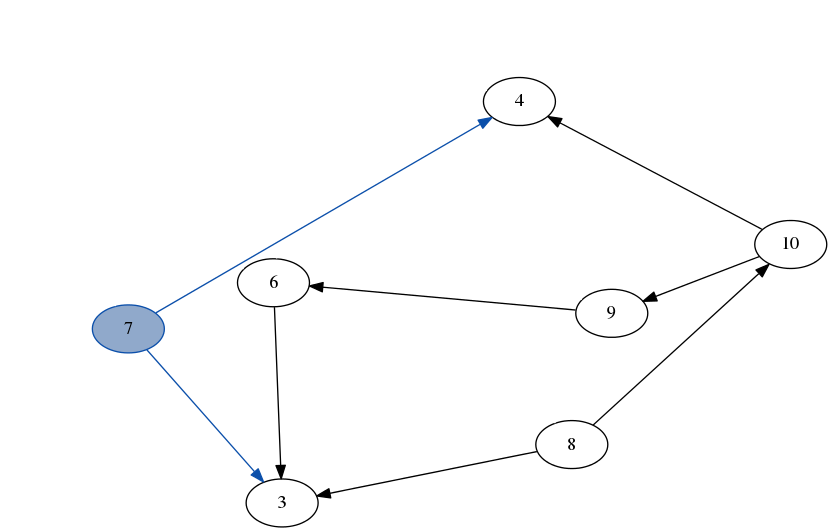

-stack: [4, 3, 6, 8, 9, 4, 6] img/match7.png

17 DFS

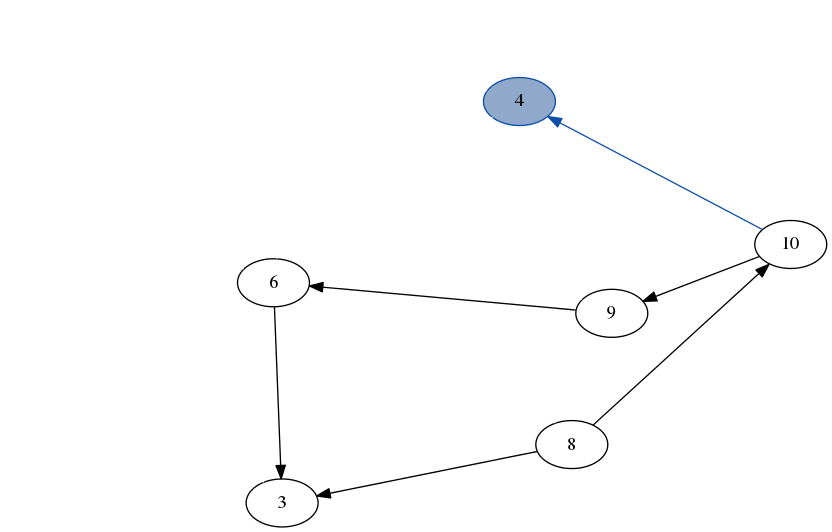

-stack: [10, 4, 3, 6, 8, 9, 4, 6] img/match4.png

18 DFS

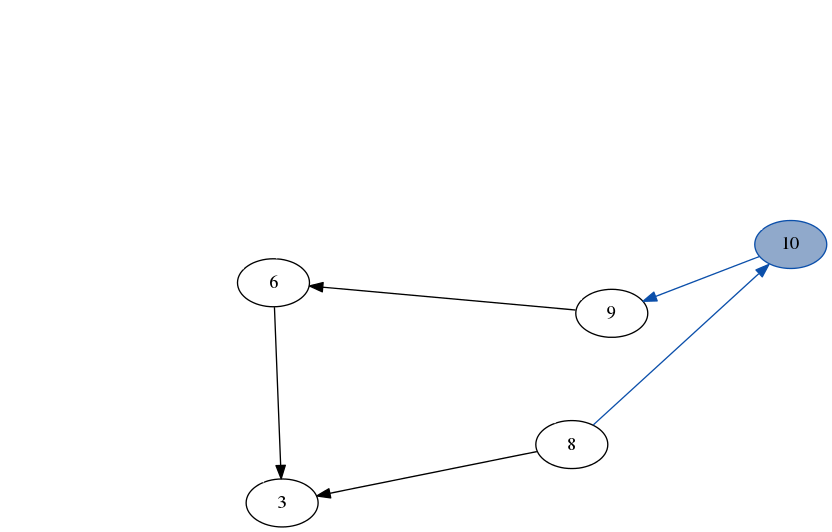

-stack: [8, 9, 4, 3, 6, 8, 9, 4, 6] img/match10.png

19 DFS

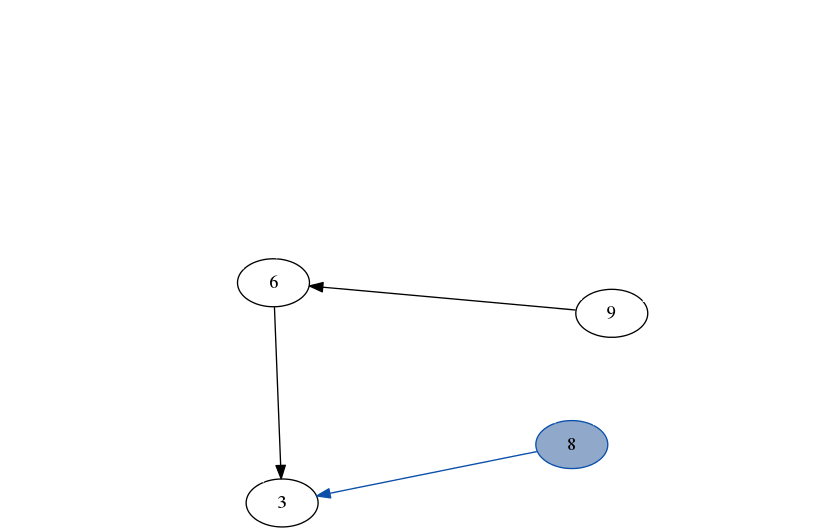

-stack: [3, 9, 4, 3, 6, 8, 9, 4, 6] img/match8.png

20 DFS

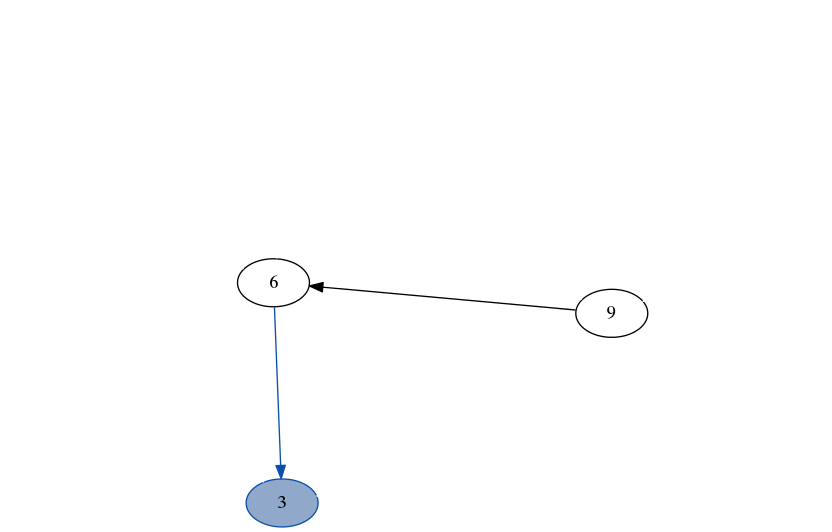

-stack: [6, 9, 4, 3, 6, 8, 9, 4, 6] img/match3.png

21 DFS

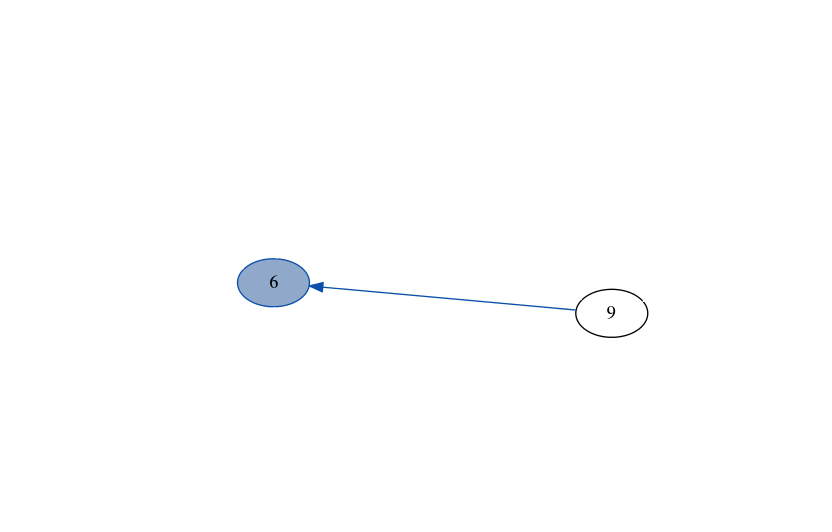

-stack: [9, 9, 4, 3, 6, 8, 9, 4, 6] img/match6.png

22 DFS

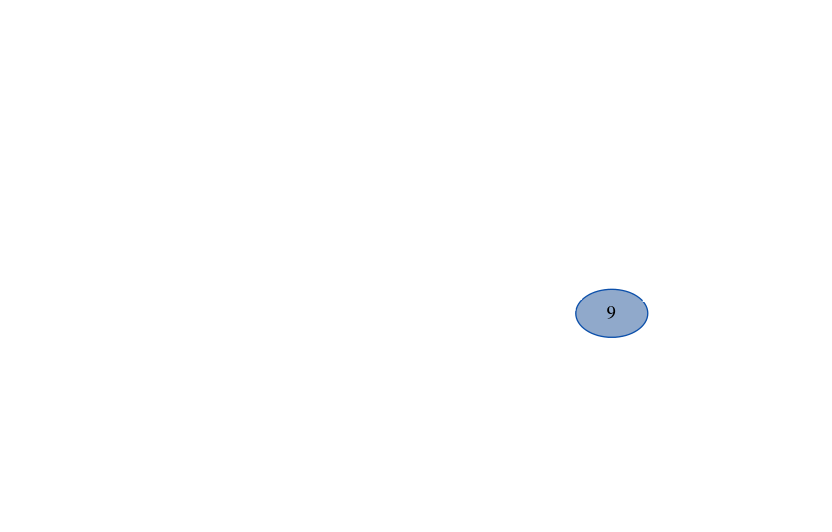

-stack: [9, 4, 3, 6, 8, 9, 4, 6] img/match9.png
